FORKLIFTS

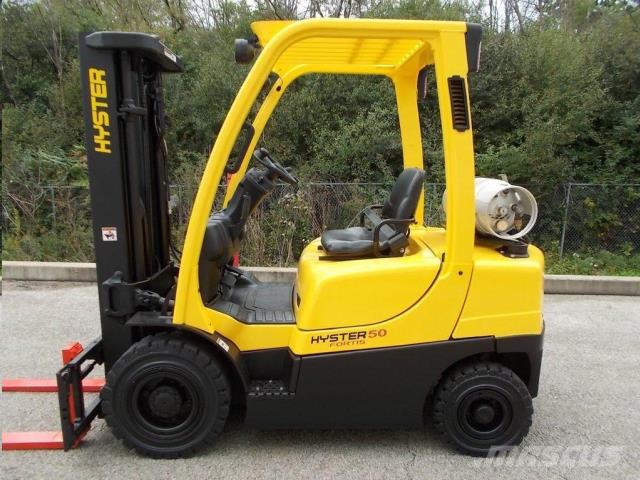

FORKLIFT 4600lbs. HYSTER
Image for reference only
Click on above thumbnails for alternate view |
|
Daily: $155.00
Weekly: $697.50
Monthly: $2,441.25
Additional Information
DimensionsDimensions
A
Length to Fork Face
8.53ft in
B
Overall Width
3.8ft in
C
Overall Height - mast lowered
7.12ft in
D
Wheelbase
5.33ft in
E
Ground Clearance
6.3in
F
Height to Top of Overhead Guard
7.09ft in
G
Max Fork Height
10.81ft in
MAST
H
Mast Tip Forward
6degrees
I
Mast Tip Rear
6degrees
Specifications
Engine
Number of Cylinders
4
Engine Model
PSI 2.4L
Power
59hp
Torque
121lb ft
Power Measured @
2700rpm
Displacement
143cu in
Torque Measured @
2000rpm
Fuel Type
LPG
Operational
Operating Weight
8399lb
Tire Type
Pneumatic
Number of Front Wheels
2
Number of Rear Wheels
2
Max Speed
11.8mph
Drawbar Pull
4952lb
Fuel Capacity
13.9gal
Front Tire Size
7.00 x 12 - 12
Hydraulic System Relief Valve Pressure
2250psi
Rear Tire Size
6.00 x 9
Hydraulic Tank
12.1gal
Axle load - front
3776lb
Axle load - rear
4623lb
MAST
Load Capacity
5000lb
Load Center
24.1in
Mast Tip Forward
6degrees
Mast Tip Rear
6degrees
Lift Speed
120ft/min
Lower Speed
114ft/min
Brakes
Parking brake
Hand/Mechanical
Service brake
Foot/Hydraulic
Dimensions
Gradeability
32%
Wheelbase
5.4ft in
Length to Fork Face
8.6ft in
Overall Width
3.8ft in
Overall Height - mast lowered
7.2ft in
Max Fork Height
10.9ft in
Turning Radius
7.1ft in
Height to Top of Overhead Guard
7.1ft in
Ground Clearance
6.3in
Right Angle Stack
8.9ft in
* Prices are subject to change.
* Please call or email us for any questions on our forklift 4600lbs. hyster rentals in Grand Cayman.
