HIGH REACH EQUIPMENT
19FT SCISSOR LIFT GS1932

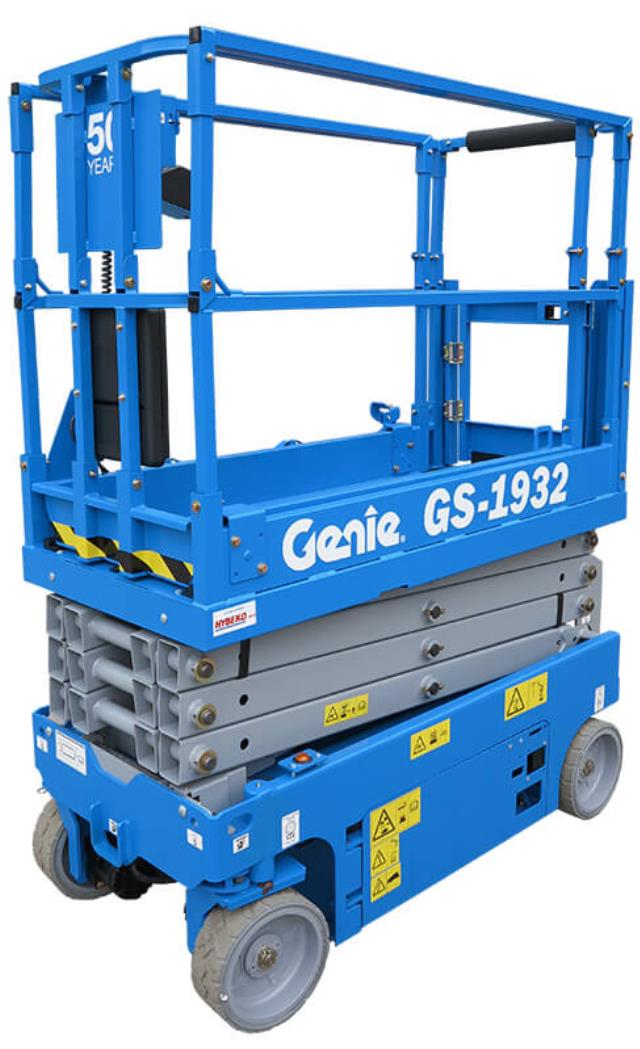

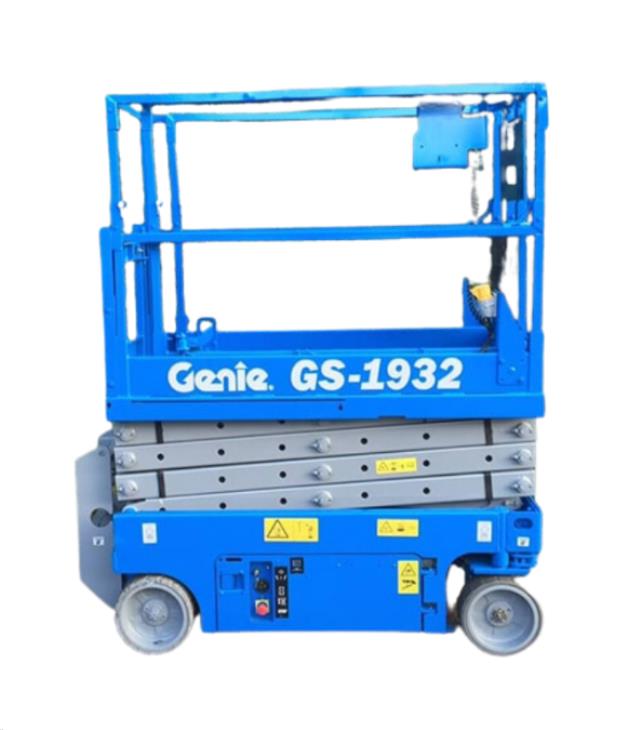

Image for reference only |
|
Daily: $90.00
Weekly: $405.00
Monthly: $1,417.50
Additional Information
SpecificationsModels GS-1932
Measurements US Metric
Working height maximum - indoor1 25 ft 3 in 7.85 m
- outdoor1 20 ft 8 in 6.47 m
Platform height maximum - indoor 19 ft 3 in 5.85 m
- outdoor 14 ft 8 in 4.47 m
Platform height stowed 3 ft 5 in 1.04 m
Platform length - outside 5 ft 5 in 1.66 m
- extended 8 ft 5 in 2.55 m
Roll-out platform extension deck 3 ft 0.91 m
Platform width - outside 29.9 in 0.76 m
Guardrail height 3 ft 7 in 1.1 m
Toeboard height 6 in 15 cm
Height-stowed - folding rails 7 ft 1 in 2.16 m
- rails folded 5 ft 11 in 1.80 m
Length-stowed 6 ft 1.83 m
Length-stowed extended 8 ft 11 in 2.72 m
Width 2 ft 8 in 0.82 m
Wheelbase 4 ft 4 in 1.32 m
Ground clearance-center 3.2 in 8 cm
- with pothole guards deployed 0.9 in 2.3 cm
Productivity
Maximum platform occupancy (in/out) 2/1 2 / 1
Lift capacity 500 lbs 227 kg
Lift capacity - extension deck 250 lbs 113 kg
Drive height full height full height
Drive speed - stowed 2.5 mph 4.0 km/h
Drive speed - raised 0.5 mph 0.8 km/h
Gradeability - stowed2 25%
Turning radius - inside zero
Turning radius - outside 5 ft 1 in 1.55 m
Raise / lower speed 26 / 22 sec
Tilt sensor activation - front to back 3°
- side to side 1.5°
Controls proportional
Drive Hydraulic drive: dual hydraulic, front wheel
E-drive: dual AC electric drive, front wheel
Brakes Hydraulic drive: dual hydraulic, rear wheel
E-drive: dual AC electric drive, front wheel
Tires - solid non-marking 12 x 4.5 in 30.5 x 11.5 cm
Power
Power source 24 V DC (four 6 V batteries)
Hydraulic system capacity Hydraulic drive: 3.8 gal 14.2 L
E-drive: 1 gal / 3.8 L
Weight3 / Floor Loading4
Weight - ANSI, CSA, CE 3,209 lbs 1,329 kg
Tire load, maximum 1,435 lbs 651 kg
Tire contact pressure 159 psi 1,099 kPa
Occupied floor pressure 244 psf 11.69 kPa
Standards Compliance ANSI A92.20, CSA B354.6, CE EN280, AS 1418.10
* Prices are subject to change.
* Please call or email us for any questions on our 19ft scissor lift gs1932 rentals in Grand Cayman.
